Classic V Series Rack Mount 3U

33-Inch Depth & Roller Wheels

1 available
Usually ships in 2-3 days.
$2,281.00
Includes GST
SKU: CLASSIC-V-3U

External Dimensions:
116.3 x 68.6 x 31.2 cm
Internal Dimensions:
Supports up to 3U

Shipping Options


Select option at checkout.

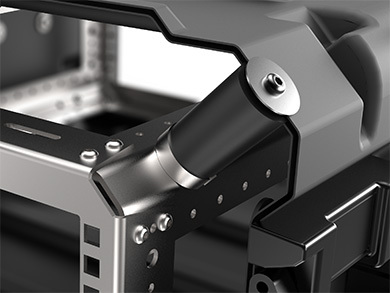

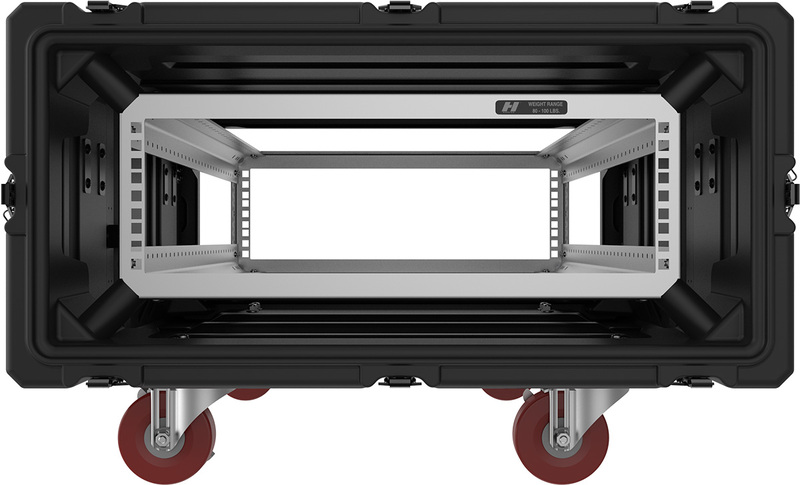

Drops and impact are an obvious no-no with electronics, but vibration puts damaging repetitive stress on delicate parts and soldered joints. That’s why you’ll find 8 heavy duty rubber shock mounts to isolate the frame inside the shell. The polymer outer shell absorbs impacts, and the shock mount inside dissipates residual movement. Rack mount cases without shock mounts transfer impact forces directly to the electronics inside.

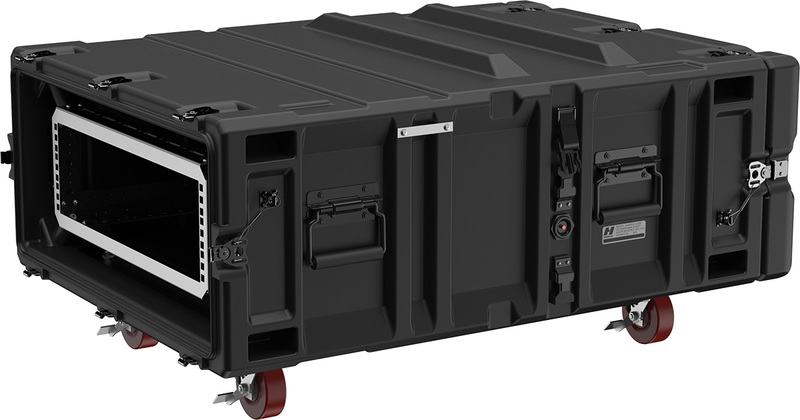

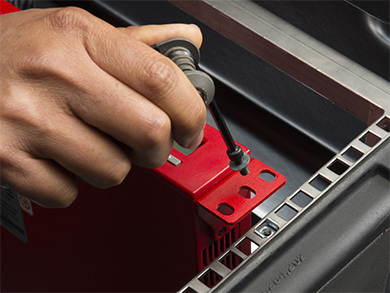

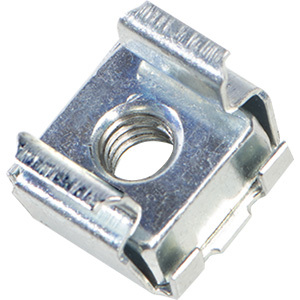

Pelican-Hardigg™ V-Series Cases are built utilizing a full-boxed 19” steel rack with a industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. These cases also include clip nuts - just attach the clip nut onto a square hole and you’ve got a secure, threaded mount.

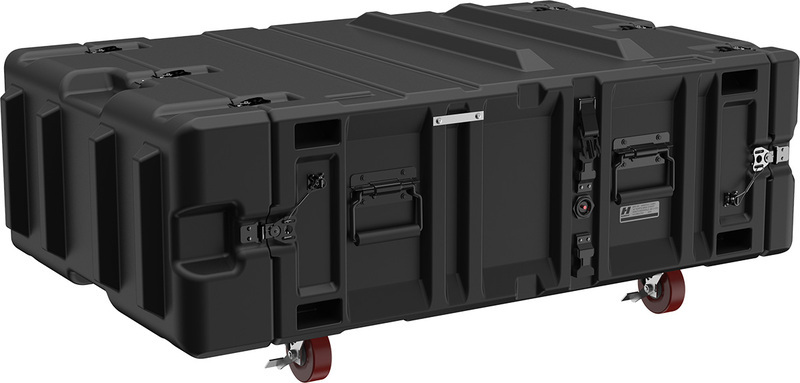

The Classic-V Series has a 33” depth frame and has longer shock mounts and a larger sway space between the rack and shell. This case also has 4 removable heavy-duty casters and stainless steel handles. Extra insurance if your equipment frequently ships via freight services.

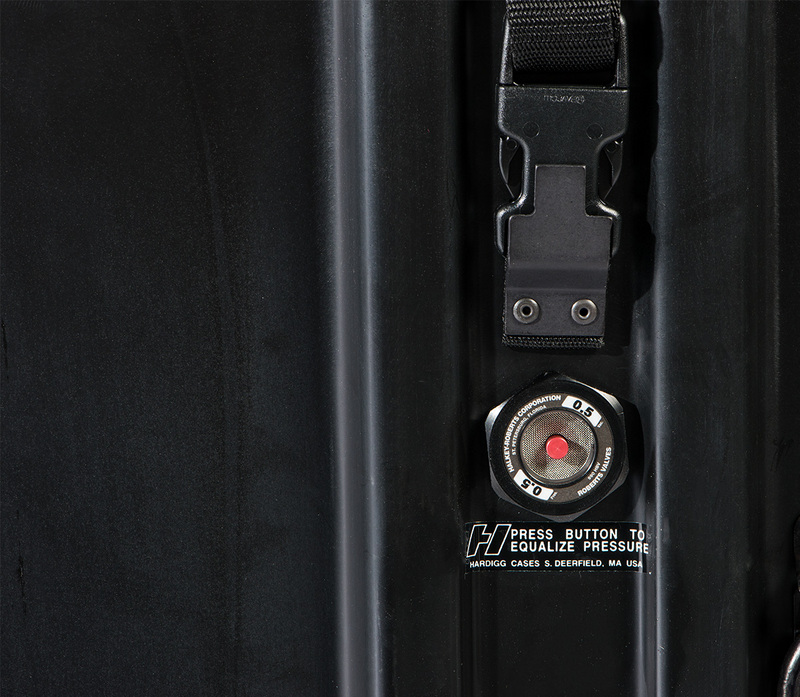

The Manual Purge Valves allow air pressure to be equalized to the atmosphere. This prevents vacuum lock that can make opening the case difficult. The O-ring Gaskets located on the lid works with the purge valve to create a fully watertight seal.

PELICAN 1 YEAR LIMITED WARRANTY FOR ROTO MOLDED CONTAINERS

Pelican Products, Inc. (“Pelican”) guarantees to the original purchaser of its rotationally molded containers that its containers will be free of defects in materials and workmanship for a period of one year from the date of invoice. Such warranty does not cover any associated hardware including closure hardware, retractable handles, wheels, and fasteners, which Pelican warrants against defects in materials and workmanship for a period of 90 days from the invoice date.

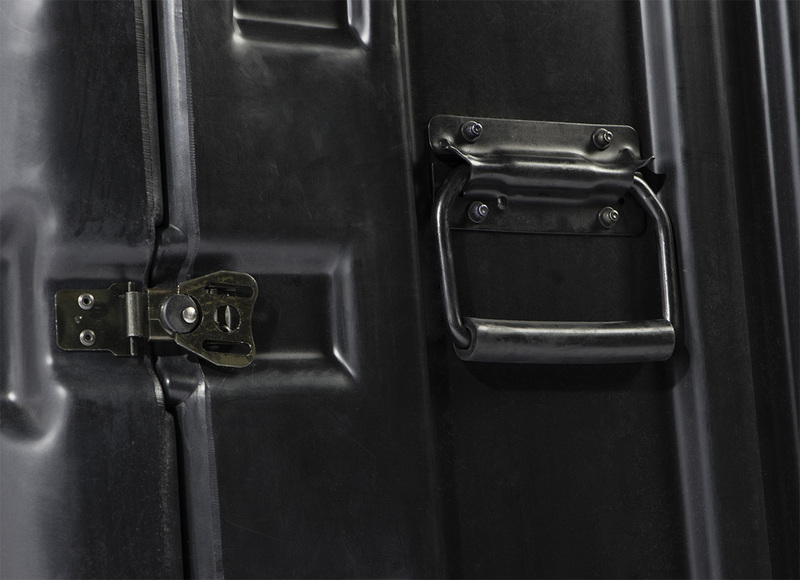

  • Stainless Steel Handles
  • Lid Hangers for lid storage while in use
  • Anti-reflective black hardware

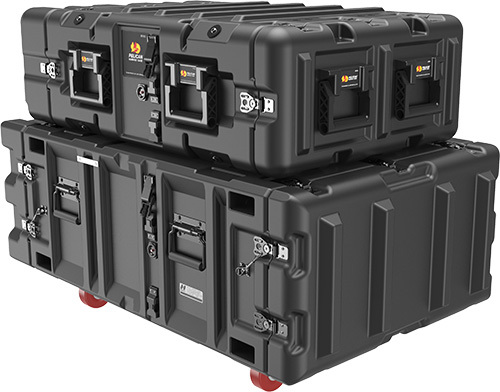

  • Coupling catches for secure stacking
  • Sealed gasket and PRV keeps container watertight and eliminates over pressurization
  • M6 clip nuts
  • REACH and RoHs compliant
  • CLASSIC V-SERIES 3U, 2410-02/35/05
  • Engineered to provide secure transport for rack mountable electronics
  • Weight ranges for 3U – 5U = 80-100 lbs (MAX 45kg's). per case
  • Weight ranges for 7U – 9U = 100-170 lbs (MAX 77kg's). per case
  • Fixed square hole frame for universal equipment fit
  • 2” Front Lid, 5” Rear Lid

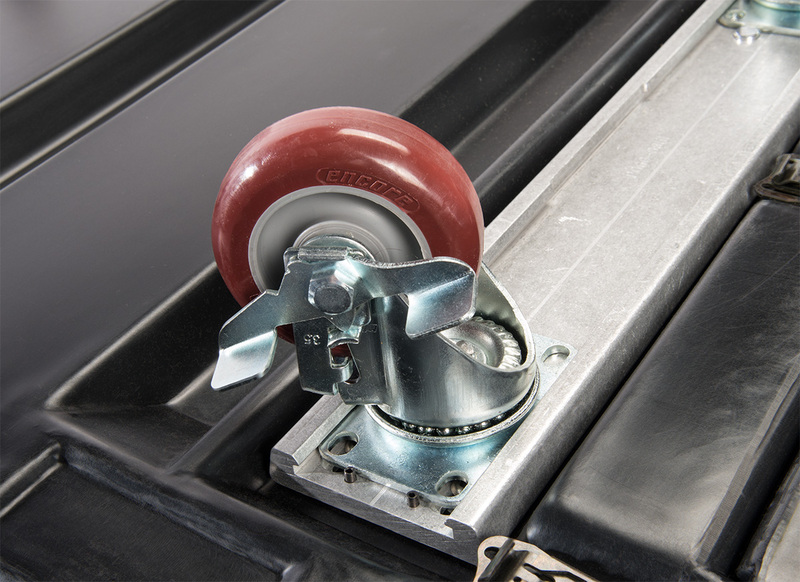

  • 4 removable heavy duty bottom casters

EXTERIOR (L X W X D): 45.80" x 27.00" x 12.30" (116.3 x 68.6 x 31.2 cm)
RACK SIZE: 33.00" x 19" x 5.25" (83.8 x 48.3 x 13.3 cm)
FIXINGS: M6 Clip Nuts (Included)
BODY: RotoMolded Polyethylene
O-RING: Silicone Sponge
PURGE BODY: Aluminum
HARDWARE: Stainless Steel (Black Oxide) / RoHs Nickel Black
FRAME: Steel (Clear Coated)
RACK DEPTH:  33.00" (83.8 cm)
INTERIOR LID DEPTH:  2.50" (6.4 cm)
INTERIOR BACK LID DEPTH:  5.25" (13.3 cm)
WEIGHT:  51.00 lbs (23.1 kg)

SKU CLASSIC-V-3U
Model # CLASSIC-V-SERIES-3U
External Dimensions 116.3 x 68.6 x 31.2 cm
Internal Dimensions Supports up to 3U
Product Weight 23.1 kg
Warranty Info 1 YEAR LIMITED WARRANTY
