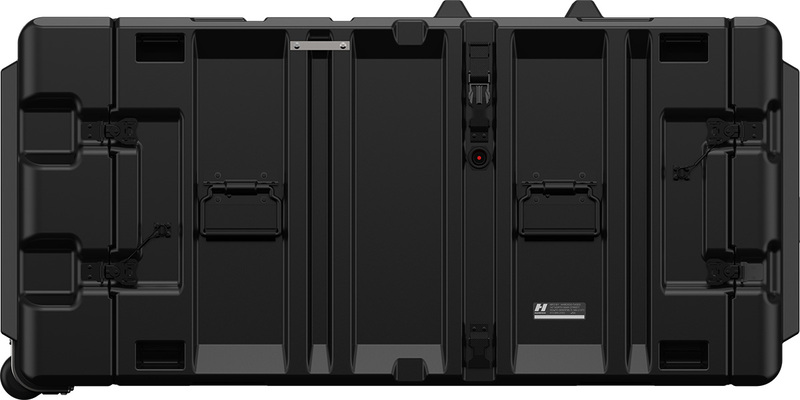

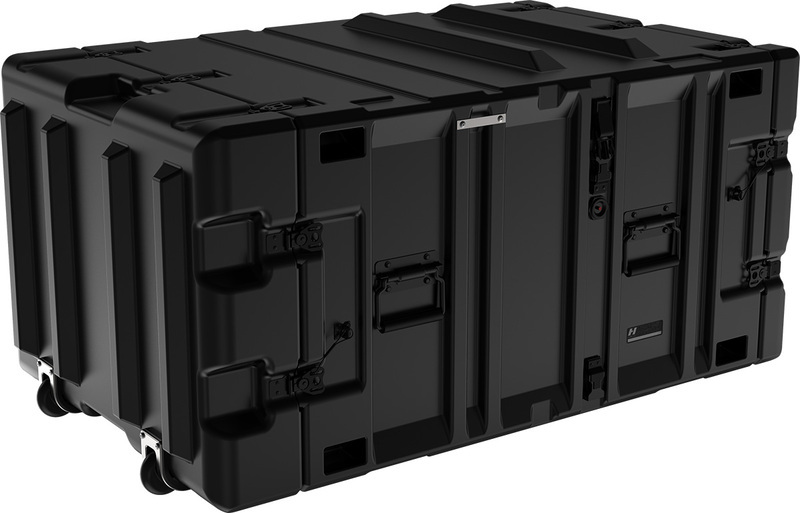

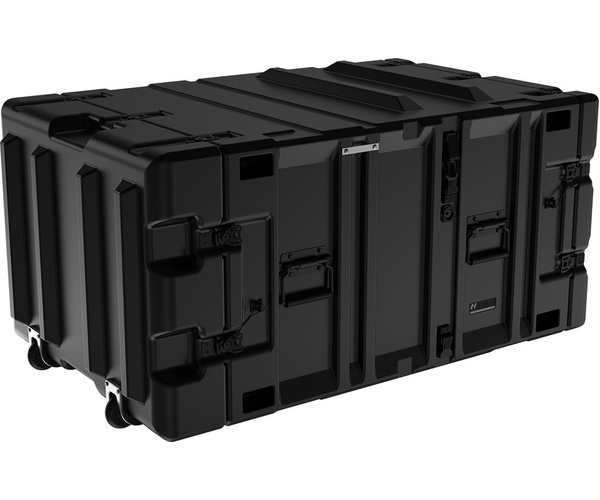

Classic V Series Rack Mount 7U
33-Inch Depth & Edge Wheels
Due: No Visability
Select option at checkout.

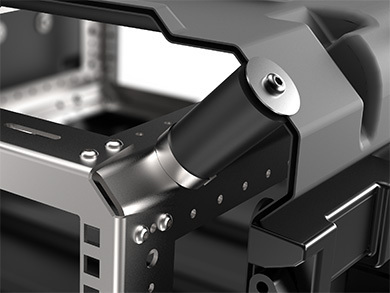

Drops and impact are an obvious no-no with electronics, but vibration puts damaging repetitive stress on delicate parts and soldered joints. That’s why you’ll find 8 heavy duty rubber shock mounts to isolate the frame inside the shell. The polymer outer shell absorbs impacts, and the shock mount inside dissipates residual movement. Rack mount cases without shock mounts transfer impact forces directly to the electronics inside.

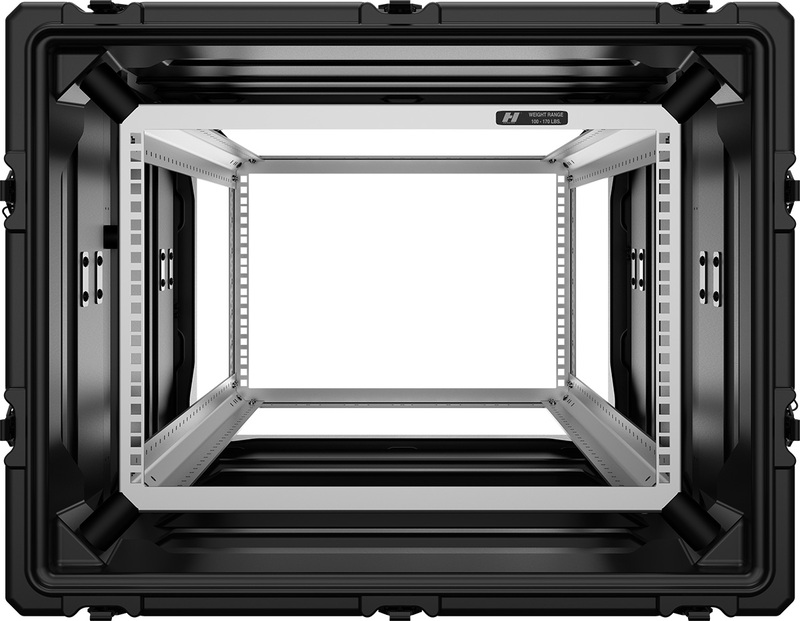

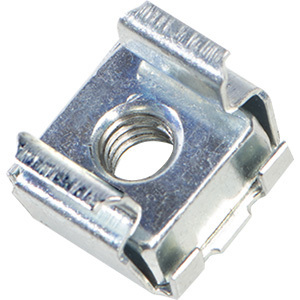

Pelican-Hardigg™ V-Series Cases are built utilizing a full-boxed 19” steel rack with a industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. These cases also include clip nuts - just attach the clip nut onto a square hole and you’ve got a secure, threaded mount.
The Classic-V Series has a 33” depth frame and has longer shock mounts and a larger sway space between the rack and shell.
The 7U and 9U versions have edge casters at one end only.

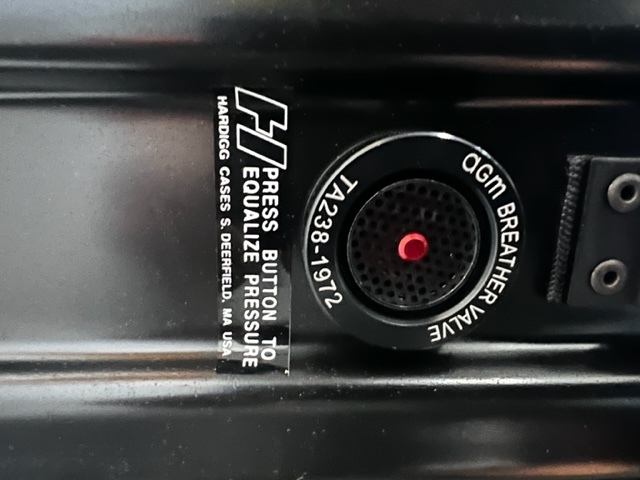

The Manual Purge Valves allow air pressure to be equalized to the atmosphere. This prevents vacuum lock that can make opening the case difficult. The O-ring Gaskets located on the lid works with the purge valve to create a fully watertight seal.
PELICAN 1 YEAR LIMITED WARRANTY FOR ROTO MOLDED CONTAINERS
Pelican Products, Inc. (â€œPelicanâ€) guarantees to the original purchaser of its rotationally molded containers that its containers will be free of defects in materials and workmanship for a period of one year from the date of invoice. Such warranty does not cover any associated hardware including closure hardware, retractable handles, wheels, and fasteners, which Pelican warrants against defects in materials and workmanship for a period of 90 days from the invoice date.

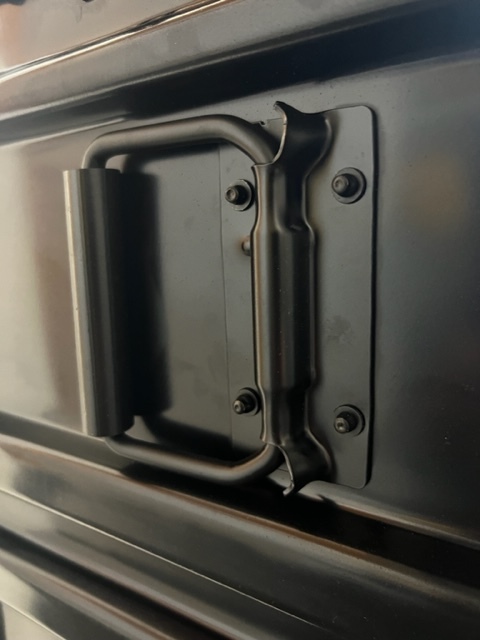

- Stainless Steel Handles

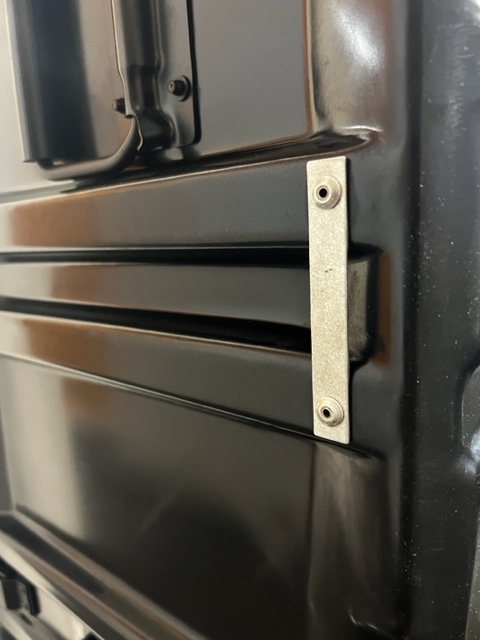

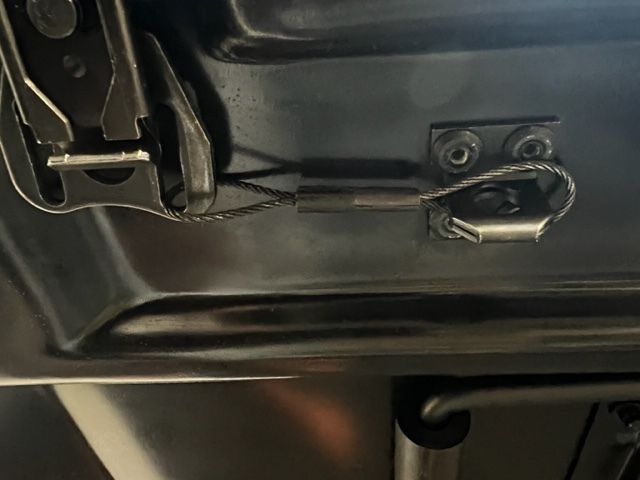

- Lid Hangers for lid storage while in use
- Anti-reflective black hardware

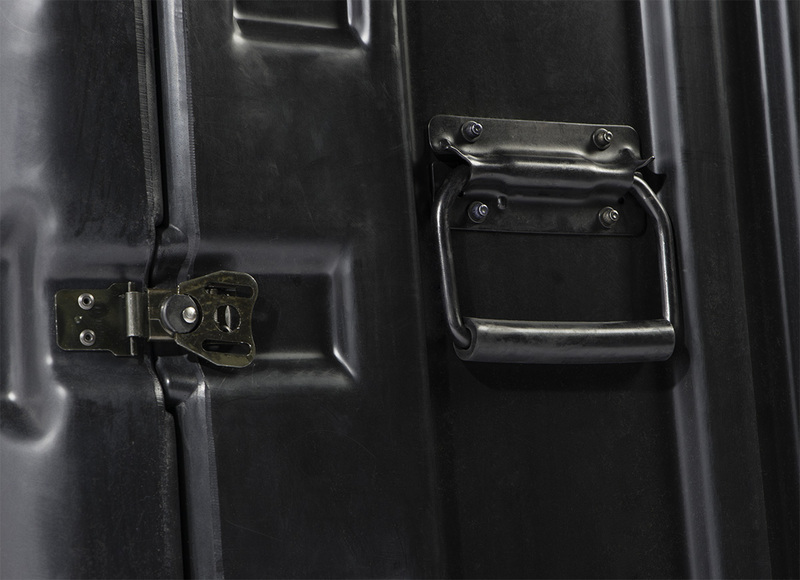

- Coupling catches for secure stacking
- Sealed gasket and PRV keeps container watertight and eliminates over pressurization
- M6 clip nuts
- REACH and RoHs compliant
- CLASSIC V-SERIES 3U, 2410-02/35/05
- Engineered to provide secure transport for rack mountable electronics
- Weight ranges for 3U to 5U = 80-100 lbs (MAX 45kg's). per case
- Weight ranges for 7U to 9U = 100-170 lbs (MAX 77kg's). per case
- Fixed square hole frame for universal equipment fit
- 2" Front Lid, 5" Rear Lid
- Built-In Edge Caster Wheels
EXTERIOR (L X W X D): 45.80" x 27.00" x 20.60" (116.3 x 68.6 x 52.3 cm)
RACK SIZE: 33.00" x 19" x 12.25" (83.8 x 48.3 x 31.1 cm)
FIXINGS: M6 Clip Nuts (Included)
BODY: RotoMolded Polyethylene
O-RING: Silicone Sponge
PURGE BODY: Aluminum
HARDWARE: Stainless Steel (Black Oxide) / RoHs Nickel Black
FRAME: Steel (Clear Coated)
RACK DEPTH: 33.00" (83.8 cm)
INTERIOR LID DEPTH: 2.50" (6.4 cm)
INTERIOR BACK LID DEPTH: 5.25" (13.3 cm)
WEIGHT: 65.00 lbs (29.5 kg)
|External Dimensions||116.3 x 68.6 x 52.3 cm|
|Internal Dimensions||Supports up to 7U|
|Product Weight||29.5 kg|
|Wheels||Built-In Edge Wheels|
|Warranty Info||1 YEAR LIMITED WARRANTY|
