Description

These Pelican Storm bezel kits give you an easy way to install a panel (not included) into the bottom part of your case. Storm Case bezel kits are supplied as an aluminum rectangular frame system for mounting the equipment into the case's base or lid at various heights. Bezel and panel mounts are used for a variety of applications. A standard use is to contain and mount electronic, test and measurement equipment within the case to be utilized as control device or data collection unit.

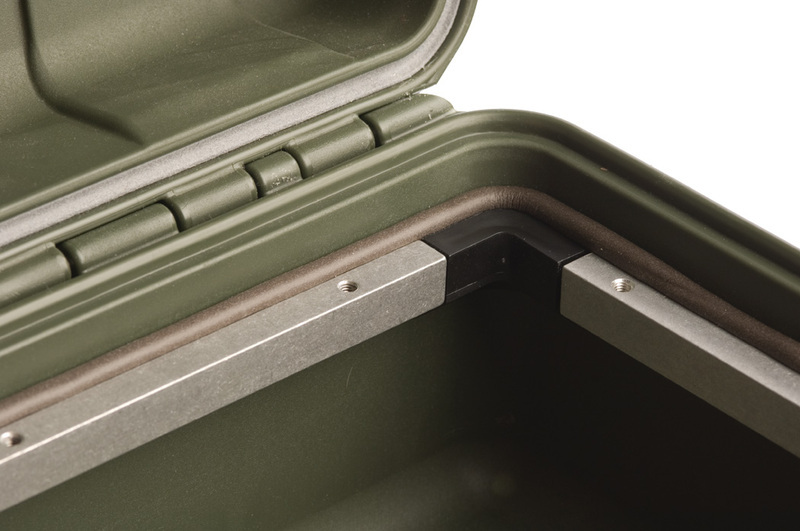

The Storm Case bezel/panel mount incorporates molded corner pieces that will fit at any depth within the case, and utilizes extruded aluminum for the bezel sides. These aluminum sides screw directly to the side of the case (rubber "o"-rings are used to keep the unit water tight). Your panel is screwed directly to the bezel. This offers greater flexibility for placement in the case, and much better durability in case of impact.

A polymer o-ring seals the panel so the base of the case remains watertight, even with the lid open. The mounting bracket, fasteners and o-ring are included in the Bezel Kit.

*The standard bezel kit has #10-32 tapped holes at the top where the equipment is mounted.

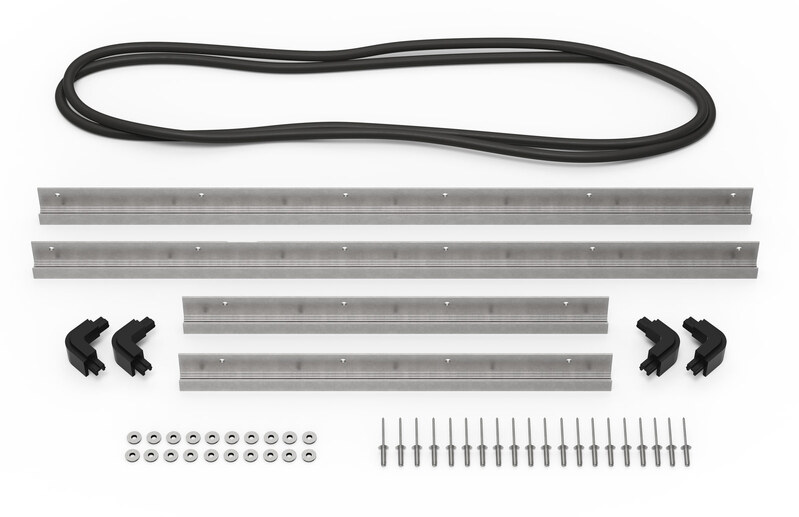

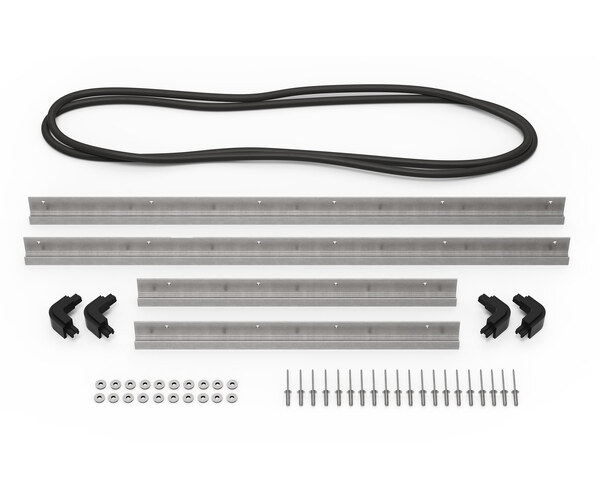

Kit includes:

  • (4) Molded Corner Pieces
  • (1) Silicone Perimeter Gasket
  • (2) Front & Back Rails
  • (2) Side Rails
  • (20) Rivets
  • (20) Sealing Washers

Specifications

SKU iM29XXBEZEL
Model # iM29XX-BEZEL
Warranty Info 1 YEAR LIMITED WARRANTY
